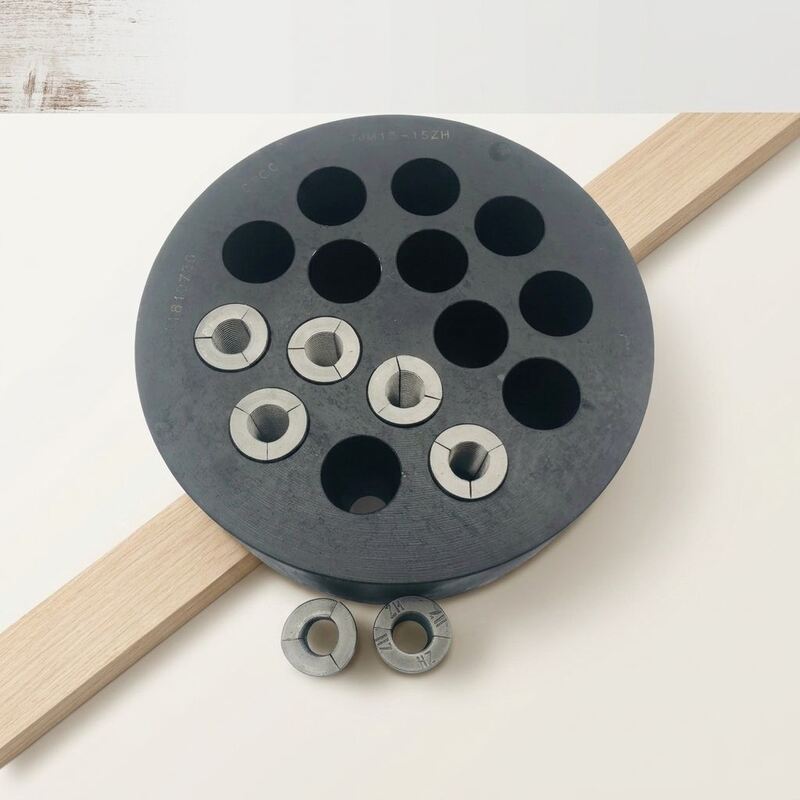

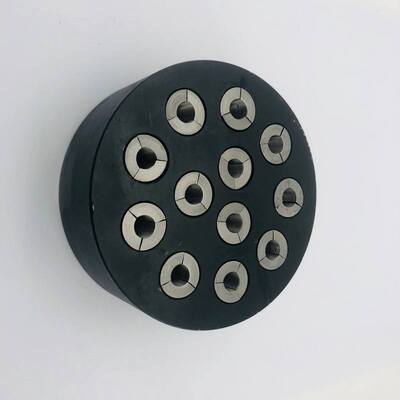

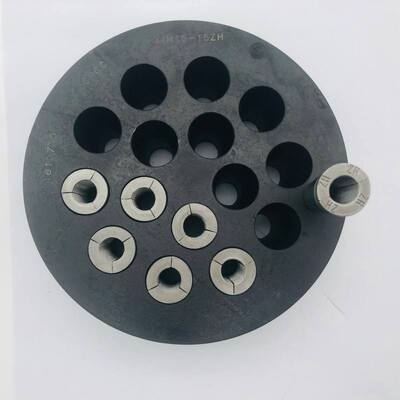

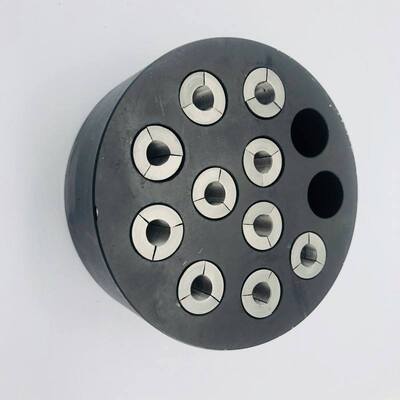

Prestressed Concrete Post Tension Round Head Anchorage
|
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Gedetailleerde productomschrijving
| Materiaal: | Gelegeerd staal | Diameter: | 12,7 mm, 15,24 mm |
|---|---|---|---|
| Capaciteit: | 1860Mpa | Sollicitatie: | Beton, gebouw |
| Draadmaat: | M6 | Bevestigingstype: | Klemankers |
Prestressed Multi Strand Group Anchor 1860Mpa Head Suitable 12.7mm
Product Details
Prestressed Concrete Post Tension Round Head Anchorage for PC strand can be use for a wide range , the design of the wedge and the anchor hole must to match, make in the tension together to work, force evenly.
Pre-stressing tendon can be selected from 1 to 55 tendons per design requirements. The tensile force can be controlled within 0 - 11000 KN.Our company can design and produce anchorages of any specifications in accordance with demands of customers.Wide applications it is adaptable for strands with diameters from Φ9.5mm to Φ21.6mm ,with standard strength of 2000Mpa or lower.With Compacted structure ,easy operation , safety and laborsaving , high anchoring efficiency and reliable anchorage.Which is widely used for different projects ,such as road and railway bridge, large scale industrial factory, high rise building,Hydroelectric dam , geotechnical engineering, etc.
Production Process
| Type | Anchor Head φE×L | Anchor Spacer φA×BxφC |
Spiral Reinforcement φG×φH×I×N |
Bellows Inner Diameter φD |
| M15-2 | 83×46 | 130×110x110 | 120×6.5×40×4 | 45 |
| M15-3 | 87×46 | 130×110x110 | 120×6.5×50×4 | 50 |
| M15-4 | 96×46 | 145×120x121.5 | 130×8×50×4 | 55 |
| M15-5 | 105×46 | 160×130x129 | 130×8×50×4 | 55 |
| M15-6 | 117×46 | 168×150x148 | 150×10×50×4 | 70 |
| M15-7 | 125×50 | 180×150x149 | 150×10×50×4 | 70 |
| M15-8 | 135×50 | 195×160x159 | 160×12×50×4 | 80 |
| M15-9 | 145×52 | 208×160x169 | 160×12×50×4 | 80 |
| M15-10 | 157×55 | 220×180x185 | 180×12×50×4 | 90 |
| M15-11 | 157×55 | 225×190x185 | 180×12×50×4 | 90 |
| M15-12 | 165×58 | 235×190x194 | 190×12×50×5 | 90 |
| M15-13 | 166×60 | 235×190x194 | 190×12×50×5 | 90 |
| M15-14 | 177×62 | 235×215x210 | 210×12×60×5 | 90 |
| M15-15 | 177×64 | 235×215x210 | 210×12×60×5 | 90 |
| M15-16 | 187×66 | 245×235x220 | 220×14×60×5 | 90 |
| M15-17 | 187×66 | 245×235x220 | 220×14×60×5 | 90 |
| M15-18 | 196×70 | 265×235x235 | 230×14×60×5 | 100 |
| M15-19 | 196×70 | 260×235x235 | 230×14×60×5 | 100 |
Production Process
About Us
Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Gray Iron,
Ductile Iron Castings and and any other precision castings for more than 25 years.
We are dedicated to meet different requirements of various customers across the world, products are mainly
involved Agricultural and Construction Machinery, Hydraulic, Mining industry, Municipal Products, some steel
and stainless steel castings for Pumps and Valves, Pipe Fittings, etc.
Please feel free to contact us if you have any requests.
Quality Control
FAQ
A) How could I get a sample? Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
C)Whether you could make your products by our color? Yes, The color of products can be customized if you can meet our MOQ.
