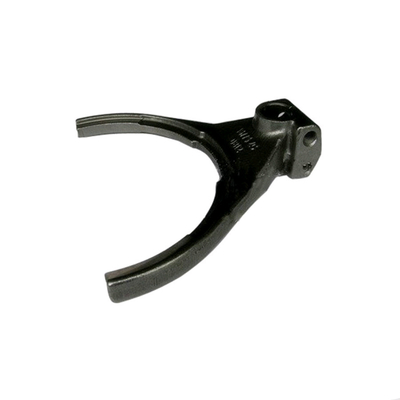

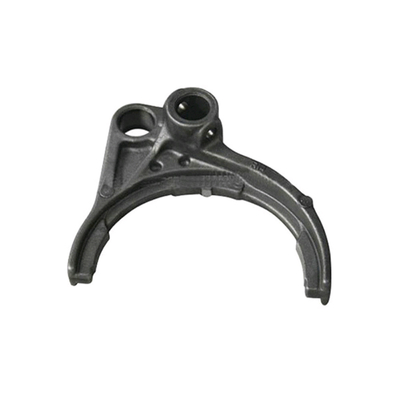

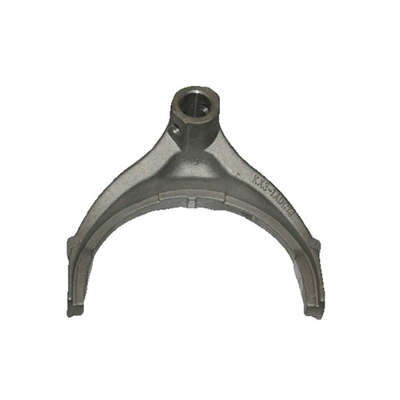

Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke

Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke

  • Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke
  • Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke
  • Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke
Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke
Product Details:
Place of Origin: Mainland China
Brand Name: NC351
Certification: ISO9001,CE,SGS
Model Number: 351
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $1-5
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 80,000 pcs monthly
Contact Now
Detailed Product Description
Part Name: Shift Fork Material: Steel
Process: Precision Investment Casting Finish: Sandblasting
Size: According To The Drawing OEM: Available
High Light:

steel investment casting

,

investment and precision casting

,

lost wax casting

Carbon Steel Investment Casting Auto Transmission Parts Gear Shifting Fork Shifting Yoke



Product Details



Material AISI 1045,alloy steel
OEM Accept
Certificate ISO/TS 16949
Package Customized Standard
Type Shift fork
Price Please contact us for quotation



Shifting fork is a part of vehicle transmission gear shaft. Its purpose is to slide gears into or out of engagement with
other gears in order change from one gear ratio to another in a manual transmission.This image is of the throw out
bearing arm not the shifting fork.

If the fork used on the machine, it is used for variable speed, mainly used in the operating mechanism. Changing the
position of lathe sliding gear can realize the variable speed. Or it is applied to control the mechanism of clutch engagement
and disconnect, in order to control the horizontal or vertical feed.

With Precision Lost Wax Investment Casting process, Tractor transmission shifting forks is made from carbon steel 1045 or
alloy steel, this casting should be heat treatment after machining and assemble with gearbox for speed adjustment.

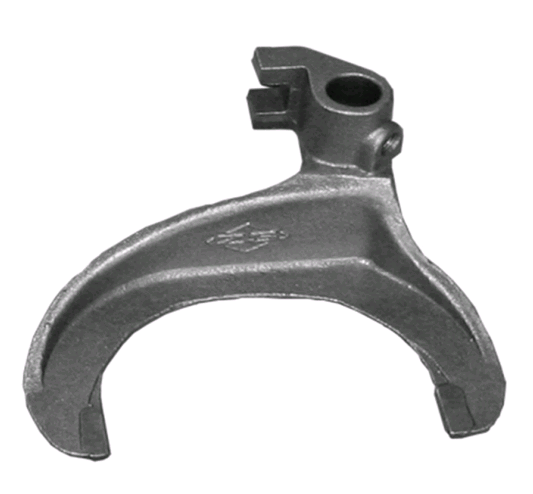

Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke 0

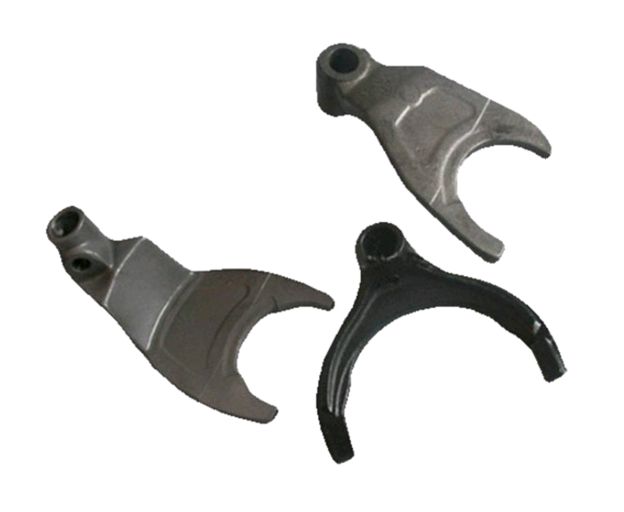

Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke 1

About Us



We are good at steel casting parts. The weight controlled is 40-2500kg.The material range includes Carbon Steel, Alloy Steel,

Stainless steel, Resistance cast iron, Gray Iron, Ductile iron, etc.


We use the processes of quartz sand casting process and Furan resin-Sand casting technics to produce the steel sand casting parts. Dimension tolerance we could reach is CT10-12, Our company is export-oriented, and the Sand casting parts have already been sold to Australia, United States, Canada, UK, (BRITAIN, England), Holland, France, Germany, Denmark, Sweden, Finland, Russia, Spain, Portugal. Italy, etc. Those Sand casting parts are widely applied in the train, Wagon, engineering machinery, auto parts, truck, ship, mining machinery, Valves, Drilling rig machinery, agricultural machinery, construction machinery and so on.

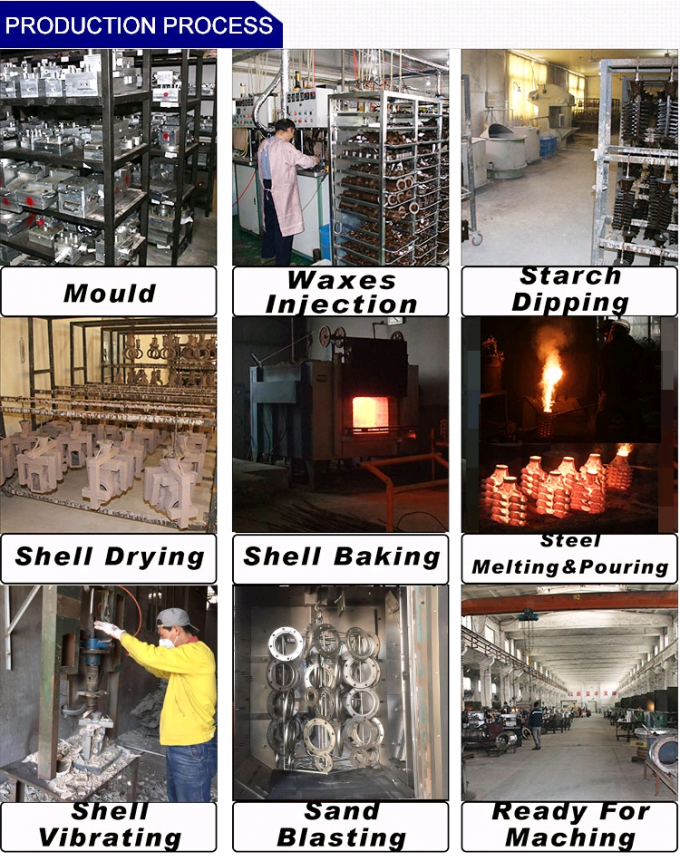

Work Shop



Auto Transmission Parts Precision Investment Castings Gear Shifting Fork Shifting Yoke 2



FAQ



How to order?

You send us drawing or sample.
We carry through project assessment.
We give you a design.
You think the design is OK.
We make the sample and send it to you.
You think the sample is good then place an order and pay us 30% deposit.
We start to make the product.
When the goods is done, we deliver it to Ningbo Port.
You pay us the balance after you see the B/L Copy.
The whole order is done, thank you!
